Architecture
Overview​
Chronicle's design is that of a Web2 service with a minimal Web3 component that gives it superpowers. The Web2 portions handle connecting to many clients and batching-merklizing their data as efficiently as possible, while the Web3 component creates a publically accessible anchor of trust for potentially untrusting clients and consumers to align on. With this combination, Chronicle is able to provide web3 utility at web2 scale.
Components​
To reason about Chronicle, consider a few components:
- Client: a user or application that wants to produce provenance of digital data
- Chronicle server: an API server that accepts hashes from clients and adds them to an ever-growing merkle tree, to be checkpointed and proven against
- Chronicle contract: a smart contract on Ethereum that stores Chronicle merkle roots and provides proof verification
- Consumer: a user or application that wants to verify the provenance of digital data
With these pieces, we can go through the flows of producing and consuming provenance.

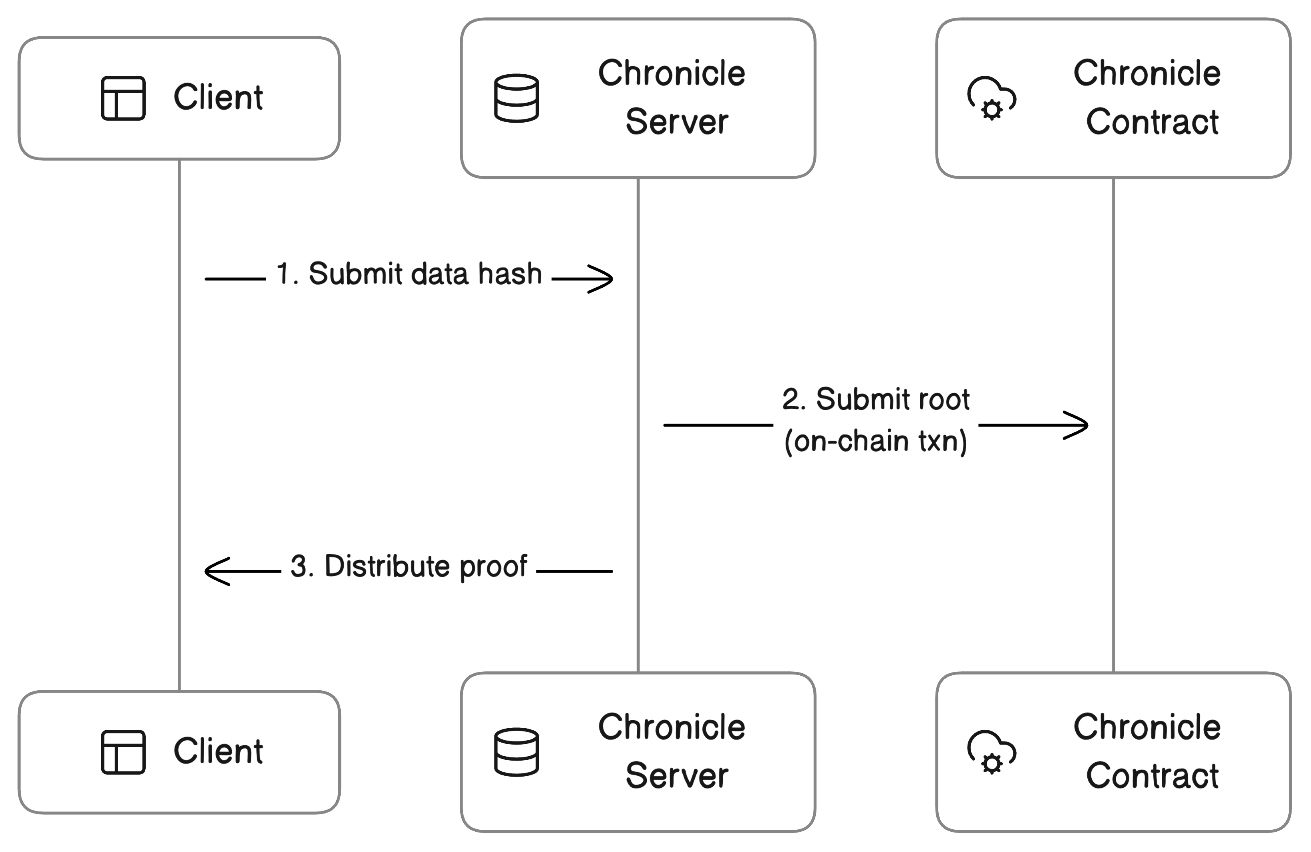

Producing Provenance​
Clients that produce provenance may be applications or users. For example, a user may want to prove that they were the first to create a piece of digital content, or an application may want to record an interaction at a point in time. In either case, the client will need to produce a hash of the data they want to prove provenance for.
With this hash, they can initiate the following steps which end with them receieving a proof of its provenance:
1. Client submits hash to Chronicle's server​
The client submits the hash to Chronicle's server. The server queues the hash, immediately returning a sequence ID to the client. The queue of hashes is frequently flushed and merklized in a batch, in anticipation of the next step.
2. Chronicle's server submits merkle root to Ethereum​
After flushing and merklizing the queue of hashes accumulated from clients, the server submits the resulting merkle root to the Chronicle smart contract on Ethereum. The Chronicle smart contract stores the merkle root, creating a public record of the its existence at a given point in time. Once the transaction is settled, clients have an etablished "checkpoint" covering their hash.
3. Server distributes proof​
Once a merkle root "checkpoint" is settled, the server can distribute a proof to the client that verifies hash's inclusion. In combination with the onchain record of that root's submission, the proof can be used to verify the hash's provenance.

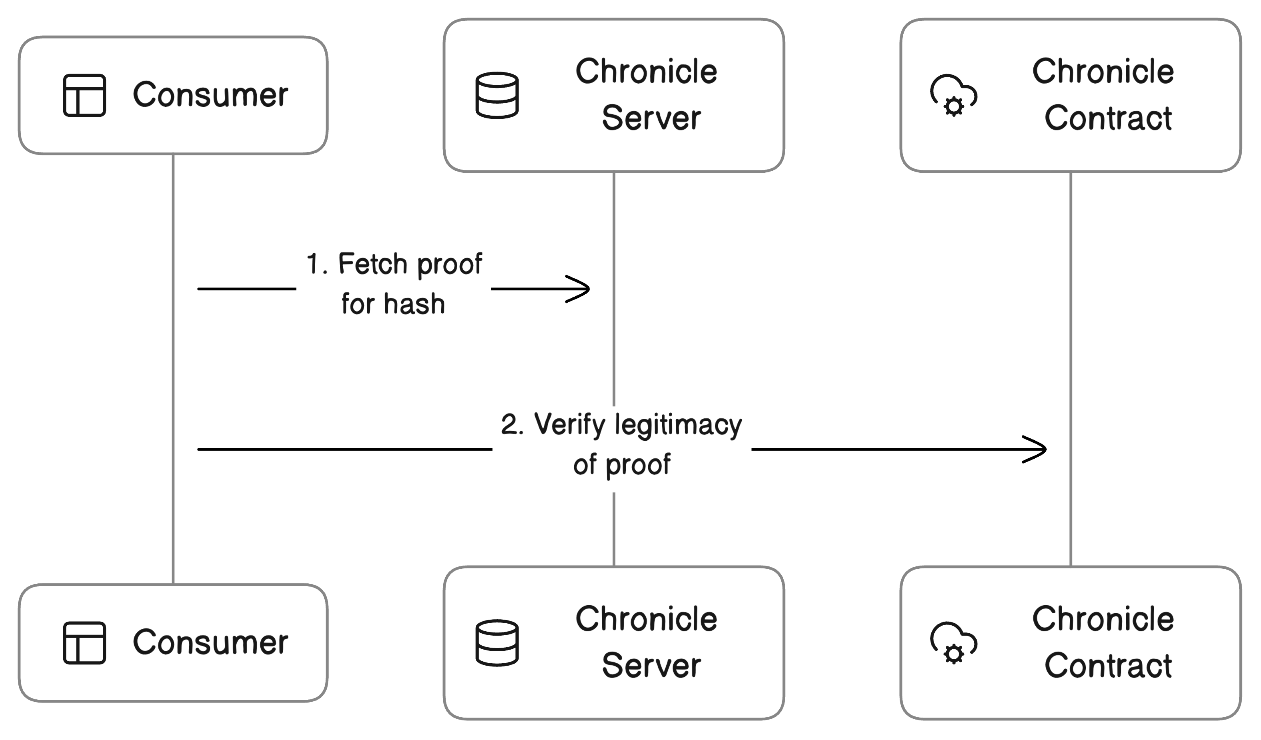

Consuming Provenance​
The consumer may be an application that wants to verify the provenance of a piece of content before displaying it to users, or a user that wants to verify the provenance of a piece of content before purchasing it. The consumer may even be a smart contract on Ethereum looking to verify provenance of submitted data before acting upon it.
The consumer is given a hash of the data they want to verify. With this hash, they can initiate the following steps:
1. Consumer fetches the proof from the Chronicle Server​
For convenience, the Chronicle server will serve proofs indexed by hash. However, it's worth noting that the proof could also be provided by any party, including the owner of the hash.
2. Consumer verifies the proof against the Chronicle Contract​
When verifying a proof, the consumer is essentially verifying its inclusion in a merkle tree. The Chronicle contract is used as a bulletin board for merkle roots, so any proofs can have their merkle roots identified as existing at a given point in time. Onchain consumers have the option of verifying their proof directly against the Chronicle contract, creating provenance-aware contracts.
Properties​
Web2 scale, web3 utility​
At a high level, Chronicle does the following:
- batch-merklize hashes submitted by clients
- submit the merkle root onto the chain
- serve proofs for the hashes
Submitting the root onto the chain is the only step that involves a web3-metered resource, and its cost is amortized across all the hashes in the batch. Merklizing and serving proofs are fairly straightforward operations and involve purely web2-metered resources. By divorcing the amount of utility gained from the amount of gas paid, Chronicle can scale to web2 levels of throughput, while still providing web3 utility.
Private data, publically verifiable provenance​
Chronicle's design allows for the production and consumption of provenance for private data. This is because the data itself is never exposed to any parties, only its hash. This gives ultimate power to the creator of the data, who can choose to reveal the data at any point in the future, while still being able to prove its provenance in private or ZK settings.
Favorable trust boundaries​
While the current design of Chronicle involves a server as a privileged actor, the degrees to which they can misbehave (and therefore the amount a client must trust them) is minimal. Consider a malicious server; because they don't know the underlying data of any received hash, they can't effectively "frontrun". Further, because the hash reveals no information about the underlying data, the only grounds upon which things like censorship or ordering unfairness can occur are via other sources of information, such as who the submitter is.
As a client attempting to produce provenance, you have to trust the server to conduct the above flow and ultimately distribute a proof to you. While this is unideal compared to a truly trustless option, the flow will typically take less than 30 seconds, and once a client receives their proof they no longer have to rely on the server for anything.
A consumer of provenance needs only a single party to serve them the proof for the data they're seeking to verify the provenance of. The Chronicle server will serve proofs for convenience, but any party, including the party serving the data hash, can include the proof data for the consumer.
Overall, while there is a small trust component to being "included" in a Chronicle update and receiving your proof, the dynamic involves privacy of the underlying data, and provides the benefit that clients will have a trustless proof akin to having submitted the hash directly to the chain, but at zero cost, within 30 minutes. As an escape hatch, users are ultimately always able to bail out to submitting their hash directly to the underlying chain to capture its provenance.
Schema agnostic​
Chronicle is schema agnostic, meaning it can be used to produce and consume provenance for any type of data. This is because Chronicle only deals with hashes of data, which are always a uniform 32 bytes. A simple schema may involve just the hash of the data payload, while a more complex one may involve signatures from corresponding private keys, or backlinks to previous provenance hashes.
This means Chronicle can capture the provenance of anything from large files to small incremental datapoints along a supply chain.
